Arad Water Meter with Electrical Output
- SKU:
- WAT0200
- Availability:
- In Stock
- Shipping:
- Calculated at Checkout
Description

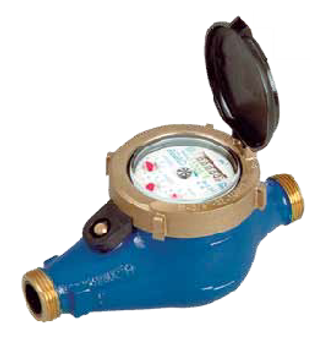

Multi-Jet Magnetic Water Meter with Electrical Output
½" - 1¼" 1 Pulse for every Litre
1½" - 2" 1 Pulse for every 10 Litres
Applications
For domestic, agriculture and industrial use.
Technical Specifications
Maximum Working Pressure 16 bar
Maximum Working Temperature 50°C
Installation Requirements
The Meter should bwe installed in an horizontal position dial face up.
Pipeline must be flushed before installation
The meter should be constantly full of water.
| Code | Size | Flow Rate m³/hr | |
| Max | Nominal | ||
| WAT0100 | 1/2" | 5 | 2.5 |
| WAT0102 | 3/4" | 5 | 2.5 |
| WAT0104 | 1" | 10 | 5 |
| WAT0106 | 1 1/4" | 12 | 6 |
| WAT0108 | 1 1/2" | 20 | 10 |
| WAT0110 | 2" | 30 | 15 |
Related Products
Related Products
Arad Water Meters
£103.56
Inc. VAT
£86.30
Ex. VAT
Multi-Jet Magnetic Water Meter
ApplicationsFor domestic, agriculture and industrial use.
Technical SpecificationsMaximum Working...

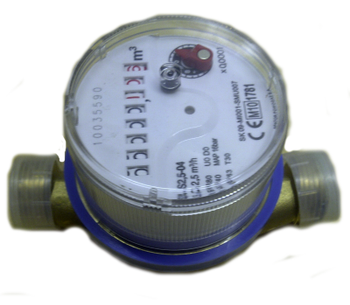

3/4" Water Meter (measures in litres)
