Ebara
Ebara Matrix 230v Pumps
- Availability:
- In Stock
- Shipping:
- Calculated at Checkout
Description
Ebara Matrix 230v Pumps
Characterised by a sturdy and compact construction. Available in various versions and models and
suitable for many applications: pressure groups, water distribution and treatment, heating and air conditioning, cooling and chiller, irrigation and rainwater recovery, industrial washing and industrial systems.
suitable for many applications: pressure groups, water distribution and treatment, heating and air conditioning, cooling and chiller, irrigation and rainwater recovery, industrial washing and industrial systems.
- Body, impellers, intermediate stages, seal holder disc and shaft (part in contact with the liquid) in AISI 304.
- The standard mechanical seal is in Ceramic/Carbon/EPDM; then there is the possibility of using different types of special seals to reach a temperature range from -15°C to +110°C
- WRAS-certified for standard models up to 85°C.
- It is possible to combine these pumps with 2 poles, self-ventilated, high efficiency asynchronous motors

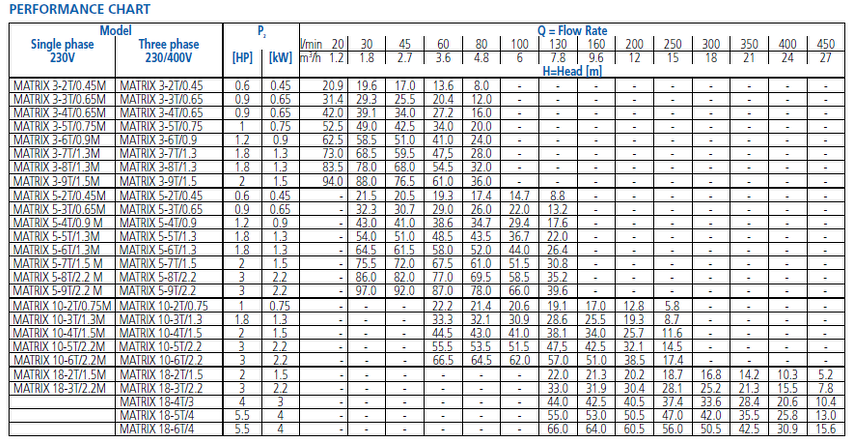

PUMP TECHNICAL DATA
- Total head up to 97 m
- Capacity up to 27 m3/h
- IE3 high efficiency motors starting from 0.75 kW
- Maximum liquid temperature, from -15°C to +85°C (standard), from -15°C to +110°C (TE version for high temperatures)
Find the Data sheet here:
Matrix Leaflet by Wayne Seaman on Scribd
