Description
Dosatron D20 Service Kit

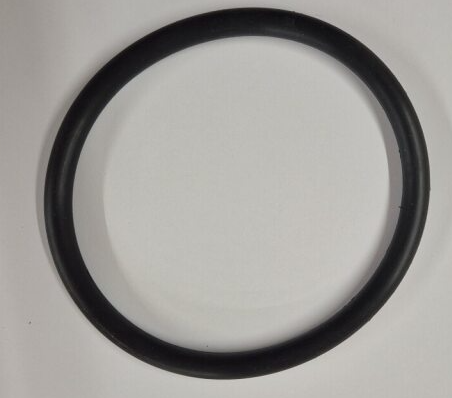

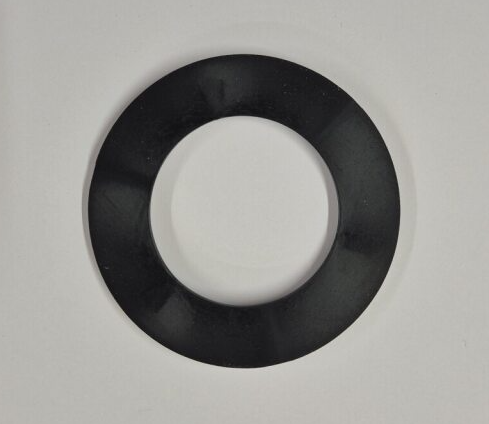

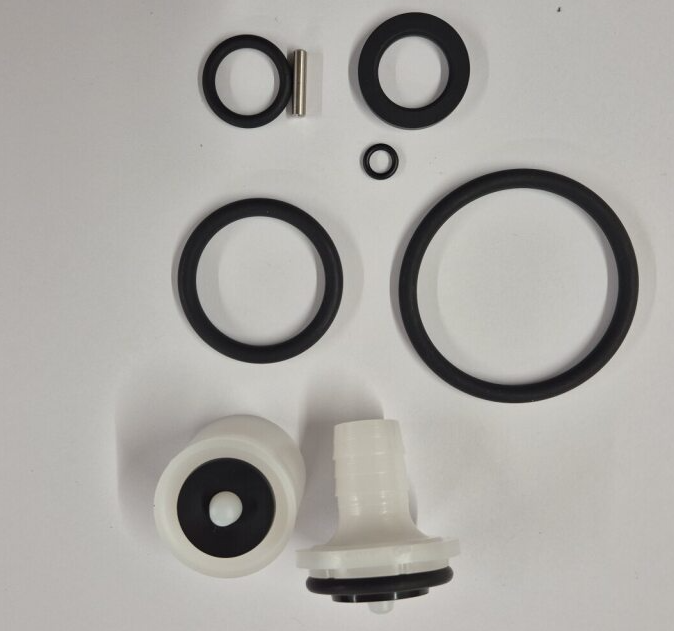

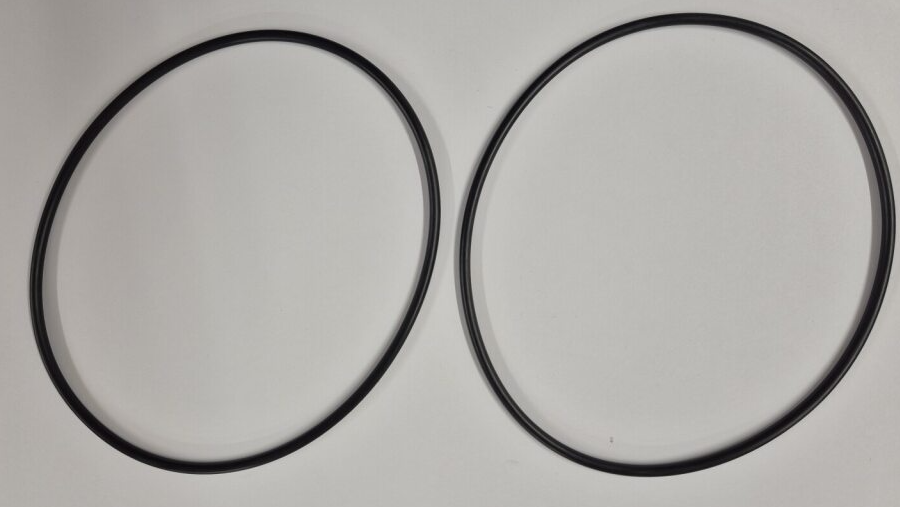

Parts included in kit. Other parts available on request.
| 20J007 | Black Setting Seal | 1 |  |
| 20J004 | Piston Seal | 1 |  |
| 20PJ030 | Non Return Valve & Seal Set | 1 |  |
| 20J005 | Body Seal | 2 |  |
| 20J001 | Bypass Seal | 1 |  |
| 20J002 | Air Bleed Seal | 1 |  |
| 20J006 | Seal | 2 |  |
D20SVF Complete Drawings Issue 2 by Wayne Seaman on Scribd
