Hunter HCC Hydrawise WiFi Irrigation Controller

 The HCC combines robust features of the popular ICC2 controller with automatic, weather-based daily adjustments of Hydrawise programming to create a smart and economical solution for commercial landscape management. HCC can control up to 54 zones and effectively operate any two stations simultaneously. The controller’s convenient modular design allows for rapid expandability with the same 4-, 8-, and 22-station output modules as the ICC2. Engineered with a prewired SmartPort®, HCC is also compatible with Hunter’s ROAM and ROAM XL remotes, allowing for fast and reliable manual operation in the field from long-range distances without the need for a smartphone.

When using the 22 station module an additional 8 station module must be used first.  22 station module is numbered for stations 17 to 38.

With a built-in milliamp sensor, troubleshooting faulty wires is a breeze. Easily install an HC Flow Meter to accurately monitor flow, prevent wasted water, and avoid damaged landscapes.

 FEATURES

ADVANCED FEATURES

HYDRAWISE EPA WATERSENSE APPROVED SMART WATERING

 All Hydrawise compatible controllers connected to Hydrawise web-based software are EPA WaterSense approved Smart Watering Controllers. Hydrawise Predictive Watering™ allows the controller to adjust schedules based on forecasted temperature, rainfall probability, wind and humidity to provide the maximum water savings you come to expect from a Hunter smart controller.

TOUCH-SCREEN INTERFACE

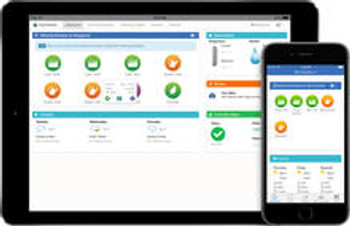

The HCC controller has a full graphical touchscreen interface, which allows for programming and manual operation at the controller, with or without Wi-Fi connectivity.

PREDICTIVE WATERING™ ADJUSTMENTS

 Daily schedule adjustments based on local weather data monitor past, current and forecasted temperature, rainfall, humidity, and wind speed. This allows for adjustments of watering times and schedules to balance water savings with water efficiency for plants.

FLOW METER DETECTION AND ALERTS

Monitor your piping and sprinklers with an optional HC Flow Meter. Receive automatic alerts when a pipe is broken to prevent property damage.

WIRING DETECTION AND ALERTS

The HCC continuously monitors electrical current flowing to solenoid valves. If the current is too high or too low, Hydrawise will send an alert to indicate which valve is not working properly. This allows for quick diagnosis and repair before damage is done to the landscape.

 CYCLE AND SOAK

 This water-saving feature allows the operator to specify a maximum cycle time for each single station in hours, minutes, or seconds, followed by a minimum soak time, to prevent runoff from slopes or saturated soil. The operator can enter any run time, and the controller will automatically divide it into cycles to allow the water to be absorbed during the soak periods. The feature is adjustable for each individual station, and provides scheduling flexibility for unique soils and site conditions.

PROGRAMMABLE RAIN DELAY

The Programmable Rain Delay feature incorporates a user specified number of days to keep the controller in the OFF mode, then allows for the system to automatically revert back to scheduled irrigation. This will prevent watering during an extended period of inclement weather, but will resume watering automatically without requiring a return visit to the controller.

DELAY BETWEEN STATIONS

 Users can program a delay between stations as the controller advances from one station to the next. This delay can range from a few seconds (to permit slow-closing valves additional time to close) to a much longer period of time (to allow pressure tanks time to recharge), based on user requirements.
