PVC Adaptor Fitting
- SKU:
- PMA0096
- UPC:
- PVC Adaptor Glue Fitting UPVC
- Availability:
- In Stock
- Shipping:
- Calculated at Checkout
Description

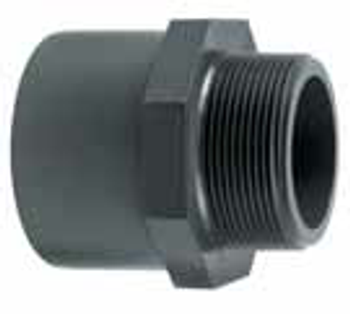

PVC Adaptor Fitting
VDL PVC Adaptor 16 bar Rated (PN16)
| Code | Socket to Pipe | Pipe size to sleeve over socket | Male thread Size MBSP | Actual Measurement | Z | B | C | D | S | PN | |
| Imperial | Metric | ||||||||||
| d1 | d2 | d3 | |||||||||
| PMA0096 | 20mm | - | ½" | ¾" | 21mm | 5 | 14 | 16 | 15 | 32 | 16 |
| PMA0098 | 20mm | - | ¾" | 1" | 26mm | 5 | 14 | 16 | 19 | 32 | 16 |
| PMA0099 | 20mm | - | 1" | 1¼" | 33mm | 6 | 14 | 16 | 19 | 32 | 16 |
| PMA0100 | 25mm | 32mm | ½" | ¾" | 21mm | 6 | 19 | 19 | 19 | 36 | 16 |
| PMA0102 | 25mm | 32mm | ¾" | 1" | 26mm | 8 | 19 | 19 | 19 | 36 | 16 |
| PMA0104 | 25mm | 32mm | 1" | 1¼" | 33mm | 8 | 19 | 19 | 21 | 36 | 16 |
| PMA0106 | 32mm | 40mm | ½" | ¾" | 21mm | 8 | 22 | 22 | 19 | 46 | 16 |
| PMA0108 | 32mm | 40mm | ¾" | 1" | 26mm | 10 | 22 | 22 | 19 | 46 | 16 |
| PMA0110 | 32mm | 40mm | 1" | 1¼" | 33mm | 11 | 22 | 22 | 21 | 46 | 16 |
| PMA0112 | 32mm | 40mm | 1¼" | 1½" | 42mm | 11 | 22 | 22 | 23 | 46 | 16 |
| PMA0114 | 40mm | 50mm | 1" | 1¼" | 33mm | 11 | 26 | 26 | 19 | 55 | 16 |
| PMA0116 | 40mm | 50mm | 1¼" | 1½" | 42mm | 11 | 26 | 26 | 23 | 65 | 16 |
| PMA0118 | 40mm | 50mm | 1½" | 1¾" | 48mm | 11 | 26 | 26 | 23 | 65 | 16 |
| PMA0120 | 50mm | 63mm | 1" | 1¼" | 33mm | 12 | 31 | 31 | 21 | 65 | 16 |
| PMA0122 | 50mm | 63mm | 1¼" | 1½" | 42mm | 12 | 31 | 31 | 23 | 65 | 16 |
| PMA0124 | 50mm | 63mm | 1½" | 1¾" | 48mm | 12 | 31 | 31 | 23 | 65 | 16 |
| PMA0126 | 50mm | 63mm | 2" | 2¼" | 59mm | 12 | 31 | 31 | 27 | 65 | 16 |
| PMA0128 | 63mm | 75mm | 1¼" | 1½" | 42mm | 19 | 44 | 38 | 23 | 80 | 16 |
| PMA0130 | 63mm | 75mm | 1½" | 1¾" | 48mm | 19 | 44 | 38 | 23 | 80 | 16 |
| PMA0132 | 63mm | 75mm | 2" | 2¼" | 59mm | 19 | 44 | 38 | 27 | 80 | 16 |
| PMA0136 | 75mm | 90mm | 2" | 2¼" | 59mm | 25 | 51 | 44 | 27 | 95 | 16 |
| PMA0138 | 75mm | 90mm | 3" | 3 3/8 " | 88mm | 25 | 51 | 44 | 33 | 95 | 16 |
| PMA0140 | 90mm | 110mm | 3" | 3 3/8 " | 88mm | 31 | 61 | 51 | 33 | 115 | 16 |
| PMA0150 | 110mm | 132mm | 3" | 3 3/8 " | 88mm | 25 | 61 | 61 | 33 | 138 | 16 |
| PMA0152 | 110mm | 132mm | 4" | 4 7/16" | 113mm | 25 | 61 | 61 | 40 | 138 | 16 |
Related Products
Related Products
PVC Imperial Adaptor Socket to Male Fitting
£1.13
Inc. VAT
£0.94
Ex. VAT
PVC Imperial Adaptor Socket to Male Fitting
PVC Imperial Adaptor 16 bar Rated (PN16)
Code

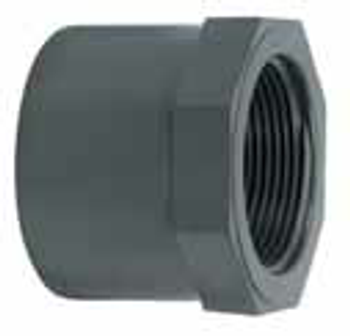

PVC Socket Adaptor Glue x FBSP Fitting
£2.10
Inc. VAT
£1.75
Ex. VAT
PVC Socket Adaptor Glue x Female Threaded Fitting
VDL PVC Socket Adaptor Glue x FBSP 16 bar Rated (PN16)

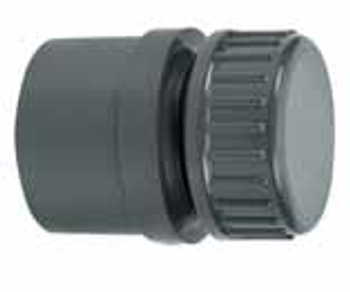

PVC Endset Fitting
£1.52
Inc. VAT
£1.27
Ex. VAT
PVC End Set Fitting
VDL PVC Endsetr 16 bar Rated (PN16)

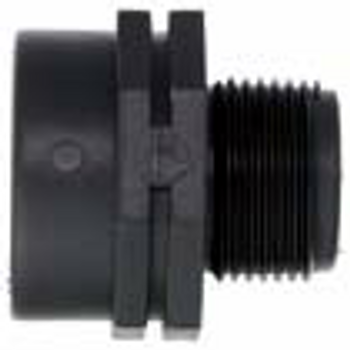

Polypropylene Bush Adaptor Threaded Fitting
