Description
PVC Socket Female Threaded x Female Threaded Fitting
VDL PVC Socket FBSP x FBSP 16 bar Rated (PN16)

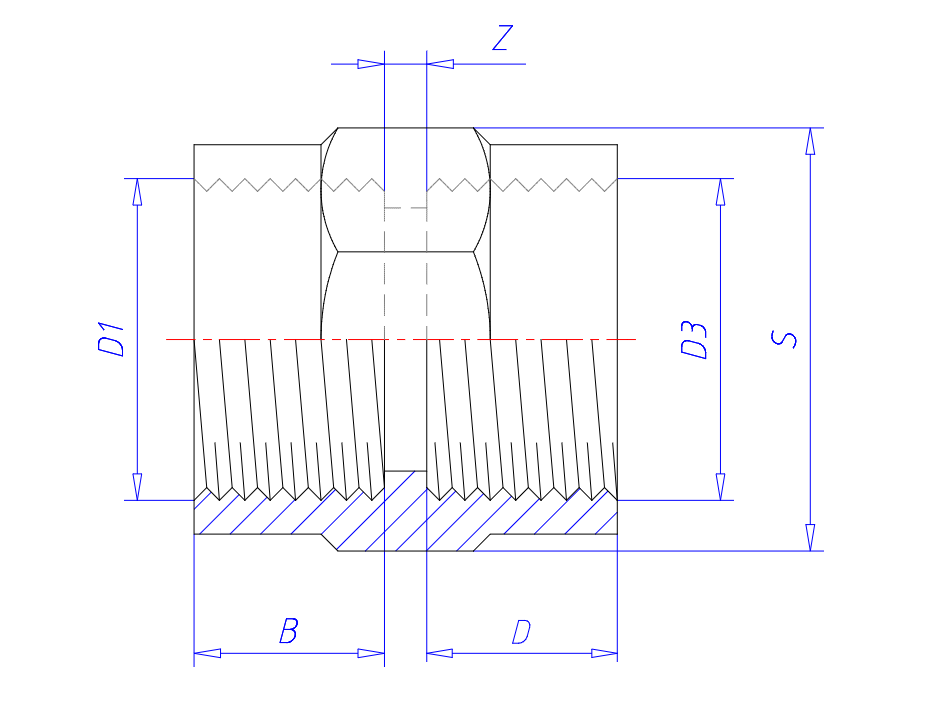

Code | Fitting Size | d1 | d3 | Z | B | D | S |
PMS0200 | 3/8" x 3/8" | 3/8" (F) | 3/8" (F) | 5 | 12 | 12 | 27 |
PMS0202 | 1/2" x 1/2" | 1/2" (F) | 1/2" (F) | 3 | 15 | 15 | 32 |
PMS0204 | 3/4" x 3/4" | 3/4" (F) | 3/4" (F) | 7 | 16 | 16 | 36 |
PMS0206 | 1" x 1" | 1" (F) | 1" (F) | 3 | 22 | 22 | 46 |
PMS0208 | 1.1/4" x 1.1/4" | 1 1/4" (F) | 1 1/4" (F) | 6 | 23 | 23 | 55 |
PMS0210 | 1.1/2" x 1.1/2" | 1 1/2" (F) | 1 1/2" (F) | 10 | 25 | 25 | 66 |
PMS0212 | 2" x 2" | 2" (F) | 2" (F) | 12 | 28 | 28 | 80 |
