Description
PVC Elbow 90° Glue x Female Threaded Fitting
VDL PVC Elbow 90° Glue x FBSP 16 bar Rated (PN16)

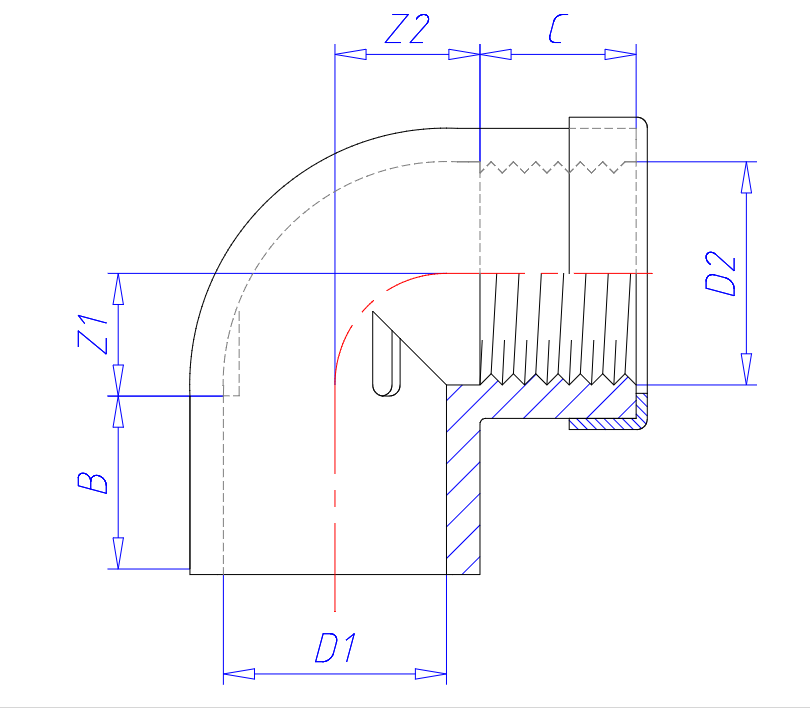

Code | Fitting Size | d1 | d2 | Z1 | Z2 | B | C |
PME0604 | 25mm x 3/4" | 25 | 3/4" (F) | 13.5 | 15.5 | 19 | 17 |
PME0606 | 32mm x 1" | 32 | 1" (F) | 17 | 18 | 22 | 21 |
PME0608 | 40mm x 1.1/4" | 40 | 1 1/4" (F) | 21 | 24 | 26 | 23 |
PME0610 | 50mm x 1.1/2" | 50 | 1 1/2" (F) | 28 | 32 | 31 | 27 |
PME0612 | 63mm x 2" | 63 | 2" (F) | 34 | 41 | 38 | 31 |
