Description
PVC Elbow 90° Glue x Male Threaded Fitting
VDL PVC Elbow 90° Glue x MBSP 16 bar Rated (PN16)

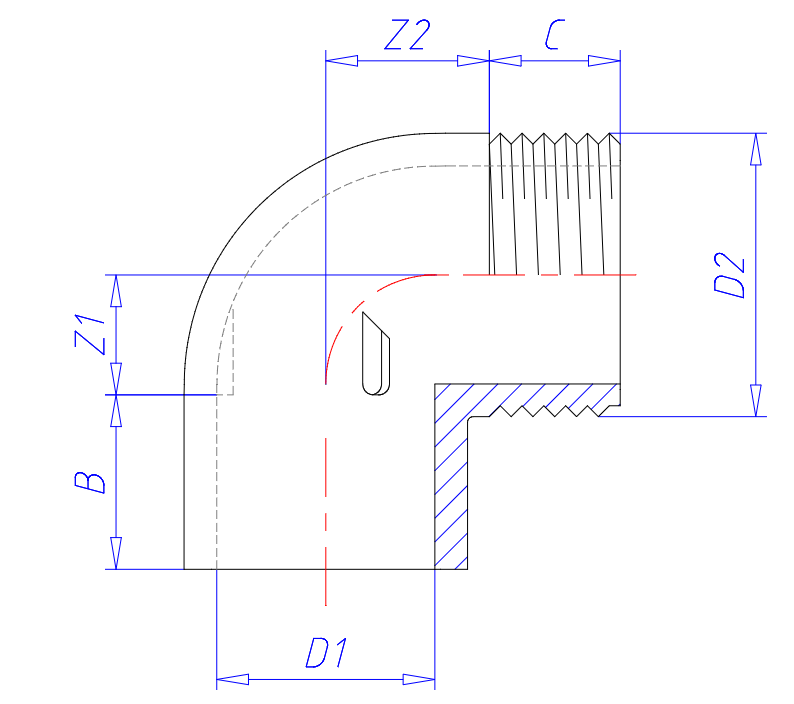

Code | Fitting Size | d1 | d2 | Z1 | Z2 | B | C |
PME0233 | 20mm x 3/4" | 20 | 3/4" (M) | 11 | 17 | 16 | 16 |
PME0236 | 25mm x 1" | 25 | 1" (M) | 17 | 20 | 19 | 19 |
PME0238 | 32mm x 3/4" | 32 | 3/4" (M) | 21 | 29 | 22 | 19 |
PME0240 | 32mm x 1" | 32 | 1" (M) | 21 | 30 | 22 | 19 |
PME0242 | 32mm x 1.1/4" | 32 | 1 1/4" (M) | 17 | 24 | 22 | 21 |
PME0244 | 40mm x 1.1/4" | 40 | 1 1/4" (M) | 22 | 27 | 26 | 21 |
PME0245 | 40mm x 1.1/2" | 40 | 1 1/2" (M) | 22 | 27 | 26 | 21 |
